2kW - 12kW

Sheet Cutting

Fiber Laser Cutting Machine​

Sheet Metal Fiber Laser Cutting Machine​

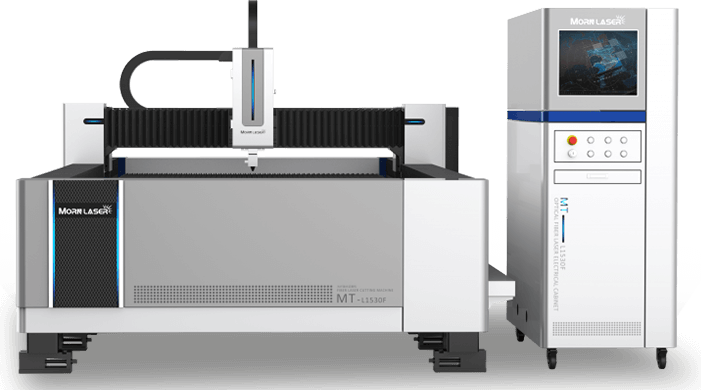

MORN Sheet Metal Fiber Laser Cutting Machine is a high-performance industrial laser cutting tool that utilizes the latest advances in laser technology to deliver quick and accurate cuts on sheets of metals. It works well with a wide range of metal materials like carbon steel, stainless steel, mild steel, aluminum, copper, brass, alloy, galvanized plate, and other non-ferrous metals. This tool includes a cooling, lubricating and dust collection system guaranteeing durability and longevity. The strict assembly process and the world’s top brand parts ensure high cutting precision and powerful cutting ability, so as to maximize the productivity and profitability of sheet metal fabricators.

Features

High precision, High efficiency, No burr, Easy operation, Free maintenance

Flying cutting, Auto edge-seeking, Auto layout, Auto follow-up, Leapfrog

Product catalog? Price? More videos?
Welcome to contact us online or leave a message!

Parameters

ModelMT-L1530FMT-L2040FMT-L2060F
Working Area3000*1500mm4000*2000mm6000*2000mm
Laser Power2000W/3000W/4000W/6000W/8000W/12000W
Repeat Positioning Accuracy±0.02mm
Maximum Idle Speed120m/min
Maximum Acceleration1.5 G
Power SupplyAC380V 50HZ OR AC220V 60HZ

Switzerland Raytools Cutting Head​

Auto-focusing

Auto and continuous focusing, automatic cutting of plates of different thicknesses and materials, free your hand and improve cutting efficiency;

Contamination-proof

Double layer contamination-proof design to protect all collimator lens and focusing lens, minimizing the risk of contamination of the collimator lens to nearly Zero.

Built-in double cooling design

Built-in double water-cooling structures can ensure the constant temperature of collimating and focusing components, perfectly solve the problem of heat dissipation.

Optimized structure design

Optimized optical configuration, smooth and efficient airflow design, no longer jam due to rust;

High Rigidity Enhanced Lathe Bed

• 30 days’ strict manufacturing process, high-temperature annealing treatment to eliminate weld seams and bed stress;

• 72h vibration aging treatment, high strength, rigidity, tensile strength, non-deformation within 20 years;

• High purity steel plate with thickness of 10mm, heavy chassis.



Cast Aluminum Beam

• High impact resistance performance, Good integrity, rigidity and toughness;

• Integrated casting aluminum beam, no rivet nailing at two ends, more stable.

Professional Sheet Cutting System​

Cypcut Laser Cutting System

More user-friendly human-machine interaction;

Simple, economical, practical and convenient;

Highly integrated and highly intelligent with file reading, design, output and processing control all in one.

Raycus Laser Source​

• 100,000 hours of lifetime, free maintenance;

• High electro-optical conversion efficiency (up to 25-30%), excellent beam quality, high energy density, and reliability, a wide modulation frequency;

• Low energy consumption, only 20%-30% of the traditional CO2 machine

S&A Industrial Water Chiller​

• Automatically adjust the temperature according to different working environment, no need to change settings parameters;

• Intelligent dual temperature dual control mode to satisfy different needs of a fiber laser device and the optics;

• Multiple alarm protection;

• CE certification; RoHS certification; REACH certification.

World Class CNC Parts​

Japan YASKAWA servo motor

Japan YASKAWA servo motor

Japan SHIMPO reducer

Japan SHIMPO reducer​

Taiwan PMI Slide Rail

Taiwan PMI Slide Rail

Taiwan YYC rack and pinion

Taiwan YYC rack and pinion​

Application

Applied Materials:  Carbon Steel, Stainless Steel, Copper, Brass, Aluminum Alloy, Galvanized sheet, etc

Application Industries:  Sheet metal fabrication, Automobile manufacture, Electrical cabinet, Elevator and escalator, Kitchen appliance Metal doors and windows
