500W - 2kW

MINI Cutting

Fiber Laser Cutting Machine

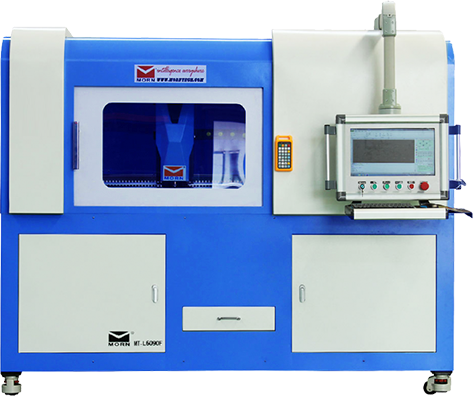

Mini Metal Fiber Laser Cutting Machine

MORN Mini Metal Fiber Laser Cutting Machine is designed for machining of thin metal plates, especially for high reflective metals, such as brass, copper, aluminum, mirror SS, gold, silver, etc. It is widely used in Jewelry, glasses, digital products, electronic components, clocks, precision machinery, craft gifts, and other precision parts production. This fiber laser cutter is known for compact design, mature technology, high cutting precision and efficiency, which is preferred by small and middle-sized factory and home use.

Features

Compact and fully enclosed design, small footprint, easy to move;

European CE standard laser protective glass;

High precision, non-pollution and environmentally friendly.

Product catalog? Price? More videos?
Welcome to contact us online or leave a message!

Parameters

ModelMT-L6090F
Working Area600*900mm (customizable)
Laser Power500W/750W/1000W/1500W/2000W
Repeat Positioning Accuracy±0.02mm
Maximum Idle Speed80m/min
Maximum Acceleration0.5 G
Power SupplyAC380V 50HZ OR AC220V 60HZ

Switzerland Raytools Cutting Head​

Drawer-type lens mount

Dial focus adjustment and manual correction, fine and flexible adjustment, adjustable range 20mm, precision 0.05mm.

Contamination-proof

Double layer contamination-proof design to protect all collimator lens and focusing lens, minimizing the risk of contamination of the collimator lens to nearly Zero.

Built-in double cooling design

Built-in double water-cooling structures can ensure the constant temperature of collimating and focusing components, perfectly solve the problem of heat dissipation.

Optimized structure design

Optimized optical configuration, smooth and efficient airflow design, no longer jam due to rust.

Professional Sheet Cutting System​

Cypcut Laser Cutting System

More user-friendly human-machine interaction;

Simple, economical, practical and convenient;

Highly integrated and highly intelligent with file reading, design, output and processing control all in one.

nLight Laser Source

• Exceptional cutting effect on highly reflective materials like gold, silver, brass, copper, aluminum, mirror SS, etc.

• Back Reflection Protection; uninterrupted failsafe processing of reflective metals with no damage to the laser

• Designed for rugged durability; ensures continuous operation in harsh manufacturing environments.

• Advanced Electronics Design; provides faster piercing and processing of fine features with smaller heat-affected zones.

S&A Industrial Water Chiller​

• Automatically adjust the temperature according to different working environment, no need to change settings parameters;

• Intelligent dual temperature dual control mode to satisfy different needs of a fiber laser device and the optics;

• Multiple alarm protection;

• CE certification; RoHS certification; REACH certification.

World Class CNC Parts​

Japan YASKAWA servo motor

Japan YASKAWA servo motor

Japan SHIMPO reducer

Japan SHIMPO reducer​

Taiwan PMI Slide Rail

Taiwan PMI Slide Rail

Taiwan YYC rack and pinion

Taiwan YYC rack and pinion​

Application

Applied Materials:  Carbon Steel, Stainless Steel, Copper, Brass, Aluminum Alloy, Galvanized sheet, etc

Application Industries:  Sheet metal fabrication, Automobile manufacture, Electrical cabinet, Elevator and escalator, Kitchen appliance Metal doors and windows
