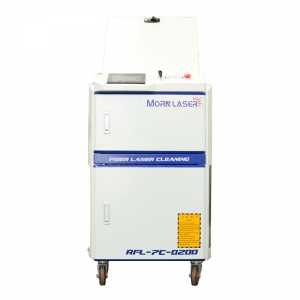

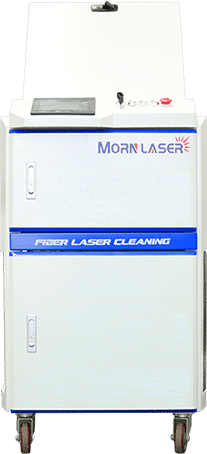

Fiber Laser Cleaning Machine​

A convenient way to handle narrow spaces and curved surface that cannot be reached with traditional cleaning tools.

With the advantage of manual adjustment of the focus, spot repair or weld cleaning the interior of large vessels is no longer a problem.

MORN® laser cleaning equipment enables you to effortlessly get rid of the toughest rust, dust, oxides, oil and other contaminations as well as paint, coating from metal, plastic, ceramics, glass, stone or concrete.

This device is mobile and compact which can either be used wherever you need or be integrated into a production or assembly line to achieve auto cleaning.

Features

Non-contact cleaning, no damage to parent material

Precise position and specific size cleaning, efficient and good surface cleanliness

No need chemical cleaning solution, no consumables, safe and environmental protection

Compact and stand-alone, you can move it wherever you need it, or work with a robotic arm to realize auto cleaning

Interchangeable field lens, adjustable depth of focus, wider cleaning range

Procuct catalog? Price? More videos?
Welcome to contact us online or leave a meassage!

Parameters

ModelMT-CL100
Power50w-1000w
Supply voltageSingle-phase 220V ± 10%, 50 / 60Hz AC
Work environment humidity≤80%
Fiber length5m,10m (can be customized)
Scanning width10-80mm
Laser average power≥100W
Power adjustment range (%)10-100(Adjustable gradient)
Focus spot diameter0.08mm
Center wavelength1064nm
Peak power maximum10kw
coolingAir cooling/water cooling
Type of manipulatorManual / Based on galvanometric laser scanner
Manipulator weight2.75KG
Size850mm×700mm×880mm
Machine Weight140KG

Problems in traditional industrial cleaning

Mechanical friction cleaning

High cleanliness, but easy to damage the substrate Liquid solid spray cleaning

Chemical corrosion cleaning

Stress-free cleaning, but the pollution is heavy

Liquid solid spray cleaning

High flexibility, but high cost, Waste liquid treatment is more complicated

High Frequency Ultrasonic cleaning

The cleaning effect is good, but the cleaning size is limited. And the workpiece after cleaning is dry

Laser Cleaning Advantages

Laser cleaning – new technology, wider application, environmental protection

Laser cleaning can be used not only to clean organic contaminants, but also to clean inorganic materials, including metal corrosion, metal particles, dust, etc. Applications include: rust removal, paint stripping, oil stains removal, cultural relics restoration, degumming, decoating, deplating. It has no challenge at all to deal with thick rust and paint layer, tough oil stains as well as surface roughening, weld cleaning and other processes. Additionally, with chemical consumables and solution and involved, it saves the trouble to deal with waste and is more environment-friendly.

High adaptability,  long service life

When designing and configuring this tool, we take practicality and quality as priority. By adopting a customizable length of fiber optic cable with a hand-guided manipulator, the laser cleaning equipment has a high tolerance range for the smoothness of the surface of the workpiece and the processing height. It can be used not only in a stable industrial environment, but also in complex outdoor places, such as rail rust removal, fresco cleaning, bronze cleaning. Furthermore, it can work with a robotic arm to realize auto cleaning. To ensure the laser quality and in consideration of cost-effectiveness, we offer with two types of laser source for option: IPG and Raycus, with power range from 50W-1000W. Both laser source has stable light emission and service life as long as 100,000h.

Higher efficiency & precision, better cleanliness

Adopting spiral flexible scanning control technology, and fully utilizing the technical characteristics of pulsed laser short pulse width and high peak value, it can greatly improve the cleaning efficiency while ensuring the cleaning effect and precision. What’s more, the tool is easy to operate, no need to disassemble, also, the cost of use is correspondingly low.

Application

Coating pretreatment

Prior to application of the coating, surface treatment is commonly required.

MORN laser cleaning device easily removes almost all kinds of impurities on metal surfaces, including oxides, greases, greases, chlorides and many other organic and inorganic residues.

This will greatly facilitate your coating process.

Soldering & welding pretreatment

Prior to soldering & welding, it is important to do pretreatment on the surface to ensure a safe weld and make the job easier.

MORN laser cleaning equipment is ideal to handle the rust as well as all kinds of impurities including dust, oxides, oil, stains, etc.
