1kW – 20kW
Extremely Short Tailing

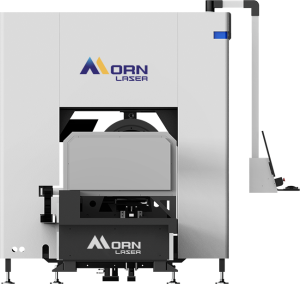

Three-chuck Tube Laser Cutting Machine
Three-chuck Tube Laser Cutting Machine
Reduce your material waste to the minimum with our three-chuck tube laser cutting machine. It boosts your tube utilization with virtually no tailings. Three-position tube clamping plus follow-up supports ensure stable tube feeding and prevent long tubes from bending. As a result, you profit from high cutting precision, great efficiency and low material costs. Tube loading weighs up to 180kg with outer diameters up to φ500mm.
Features
Improved tube utilization
Top production output
Low cost per part
Optimal parts design
Interested in product catalog, pricing or videos?
Just leave a message or chat with our enthusiastic sales consultant.
Parameters
| Model | MT-6000 | ||
| Tube Length | 6m (customizable) | ||
| Max.Clamping Diameter | 160mm / 200mm / 320mm /500mm(optional) | ||
| Laser Power | 2000W/3000W/4000W/6000W/12000W/20000W | ||
| Repeat Positioning Accuracy | ±0.02mm | ||
| Maximum Idle Speed | 120m/min | ||
| Maximum Acceleration | 1.5 G | ||
| Power Supply | AC380V 50HZ OR AC220V 60HZ | ||
Switzerland Raytools Cutting Head
Auto-focusing
Autofocusing function frees your hands and enhances cutting efficiency.
Contamination-proof
Double layer contamination-proof design protects all lens and minimizes the risk of contamination.
Built-in double cooling design
Built-in double water-cooling structures keep the lens temperature constant, avoiding lens damage due to poor dissipation.
Optimized structure design
Optimized optical configuration ensures smooth and efficient airflow.
Previous
Next
Professional Tube Cutting System
Intuitive operation system with touch control simplifies your laser cutting process.
Integrating CAD, Nest and CAM modules in one, from drawing, nesting to workpiece cutting, metal processing is just a few clicks away.
Raycus Laser Source
100,000 hours of lifetime, free maintenance
High electro-optical conversion rate (up to 40%) and excellent beam quality.
Low electricity consumption greatly saves your costs
S&A Industrial Water Chiller
Automatically adjust the temperature according to the different working environments, no need to change settings parameters
Intelligent dual temperature dual control mode provides effective temperature control solutions for fiber lasers in all directions
World Class CNC Parts
Japan YASKAWA servo motor
Japan SHIMPO reducer
Taiwan PMI Slide Rail
Taiwan YYC rack and pinion
Application
Applied Materials: Carbon Steel, Stainless Steel, Copper, Brass, Aluminum Alloy, Galvanized sheet, etc
Application Industries: Sheet metal fabrication, Automobile manufacture, Electrical cabinet, Elevator and escalator, Kitchen appliance Metal doors and windows
