Fabric CO2 Laser Cutting Machine

MORN Fabric CO2 Laser Cutting Machine features auto feeding and collecting devices to replace manual material feeding and collecting. It caters to 24 hour factory processing requirements and has reliable stability, continuity and safety. The perfect combination of mechanical construction, electrical performance and software design enables excellent performance of the machine.

Features

https://youtu.be/cMdbXyxpDDM

1. Big Eye Design: tempered glass window, easy to observe whole working process

2. Non-contact Cutting: protect material from contact damage, narrow cutting seam, improve material utilization rate

3. Auto-feeding System: save feeding time, save labor and cost

4. Water Cooling Protection: to avoid the damage of the laser tube due to high temperature, the machine will not work if the water chiller is not connected

5. Collecting Drawer Design: convenient for collecting scraps, improve efficiency

Product catalog? Price? More videos?
Welcome to contact us online or leave a message!

Parameters

Model	MT-L1610A
Working Area	1600*1000mm
Laser Output Power	80-150W
Worktable	Aluminum blade worktable
Positioning Accuracy	<0.01mm
Cutting Speed	Max. 600mm/s
Graphic Formats Supported	BMP,PLT,DST,AL,DXF,PNG, JPEG, GIF, etc.
	(approx. 20 types of formats)
Power Supply	AC110V/220V 50HZ/60HZ

transmission

Auto-focus System

High accuracy and efficiency, save your time for focal length adjusting
Red-dot Positioning visualizes laser position and working dimensions

Imported Optical Lens

Imported Optical Lens, beam transmission up to 99.3%, 14% higher than the common lens

lens
laser tube

Laser Tube

Germany Glass Tube

40% higher laser power than common laser tuber of the same length

Lifetime lasts up to 10,000h.

Control Panel

Ethernet(10/100M) and USB2.0 transmission(support offline works);
Optimized engraving and cutting path;
Dynamic display of the whole processing progress of the graphics;
Support breakpoint continuous engraving and cutting.

control-panel
motor

High Dynamic Drive and Motor

Different vibration strategies for low speed, medium speed to ensure smooth and reliable

operation of the motor within full speed range.

High reliability with overvoltage and overcurrent protection

Large-torque, smooth running with low heat

Honeycomb worktable

Better adsorption performance for machining soft materials such as leather, paper, rubber, cloth, etc.

honey-work-table
belt

Synchronous Belt

Made of TPU and stainless steel wire
Stable size, flexible, low pre-tension, low noise, wear-resistant
Linear speed reaches 80m/s

Original Taiwan PMI Linear Guide Rail

The linear guide ensures precise processing for delicate and complicated designs, high location accuracy(up to 40um)
Less abrasion, maintain accuracy for a long time
Good performance for high-speed movement, greatly reducing the required drive force

guide-rail
water-chiller

Industrial Water Chiller

Intelligent dual temperature dual control mode to satisfy different needs of the fiber laser device and the optics; temperature control accuracy：±0.3℃
Multiple alarm protection
Long life and durability, easy to operate

Optional Parts

rotary

Rotary Attachment

Facilitate engraving on cylinder objects such as bottle, cup, etc. Max. range: 1100mm or more to customize
Electric Chuck ( for regular cylinder)
updown-table

Updown table

Efficient for your material handling.

air-filter

Air Fan

Environment-friendly, pollution-free, suitable for indoor working

Application

Applied Materials

Acrylic	⩗	⩗
PVC	⩗	⩗
Leather	⩗	⩗
Rubber	⩗	⩗

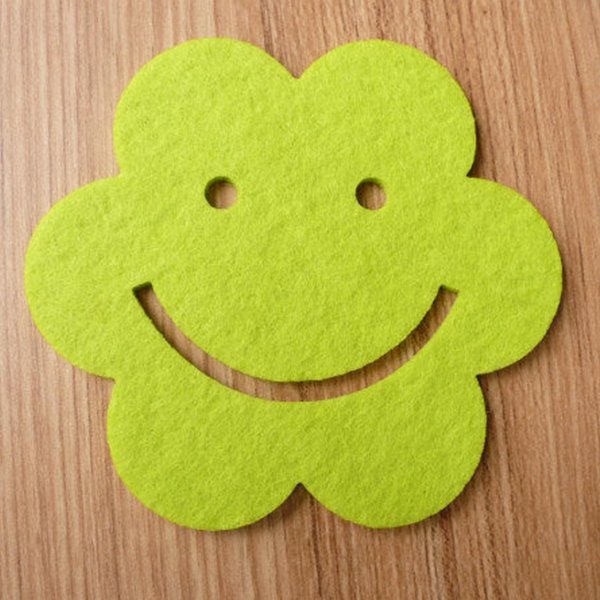

Fabric	⩗	⩗
Wood	⩗	⩗
Polywood	⩗	⩗
MDF	⩗	⩗
Laminate	⩗	⩗
Organic Board	⩗	⩗
Mat Board	⩗	⩗
Fiberglass	⩗	⩗
Plexiglass	⩗	⩗
Mylar	⩗	⩗
ABS	⩗	⩗
Paper	⩗	⩗
Cloth	⩗	⩗
Fabric	⩗	⩗
Glass	⩗
Crystal	⩗
Marble	⩗
Painted metal	⩗
Aluminum	⩗
Ceramic	⩗
Tile	⩗

Application Industries

Handicraft Carving, Advertising, Light Guides, Models, Leather, Clothing, Toys, Paper Products Industry, Electronic Product, Printing and Packaging, DIY, Photo Studio, and other industries with high requirements on engraving precision
