CO2 Engraving and Cutting Machine​

MORN CO2 Engraving and Cutting Machine is designed for engraving and cutting non-metal materials with high precision requirements and works great with wood, paper, leather, cloth, resin, acrylic, plastic, rubber, ceramic tile, crystal, bamboo, organic glass, etc. It’s suitable for both home and commercial purposes, and widely used for fine carving, engraving and cutting, hollow carving of acrylic, leather, paper, fabric, MDF, rubber, organic board, two-color board, wood board, bamboo products, paper, glass and other non-metallic materials with various texts, graphics, images, trademarks, etc.

Features

Cover Open Protection: it will automatically cut off the power when the cover is open to protect the human beings from radiation or hurt by the laser, increasing the safety, stability, and reliability of use and maintenance.

Water Cooling Protection: to avoid the damage of the laser tube due to high temperature, the machine will not work if the water chiller is not connected.

Red-dot Positioning: the machine uses a red light indication method to achieve precise positioning of the laser beam

Breakpoint Continuous Engraving: it will continue working from breakpoint after the power is on again.

Worktime Preview Function: it can demonstrate actual working time with accuracy up to the millisecond level, and also supports dynamic display of machining path and coordinate points, real-time display and tracking of machining progress

Procuct catalog? Price? More videos?
Welcome to contact us online or leave a meassage!

Parameters

ModelMT-L960MT-L1390
Working Area900*600mm1300*900mm
Laser Output Power60-100W80-150W
WorktableAluminum blade/Honeycomb worktable
Positioning Accuracy<0.01mm
Engraving SpeedMax. 500mm/s
Graphics Formats SupportedBMP,PLT,DST,AL,DXF,PNG, JPEG, GIF, etc.
 (approx. 20 types of formats)
Power SupplyAC110V/220V  50HZ/60HZ
transmission

Auto-focus System​

High accuracy and efficiency, save your time for focal length adjusting
Red-dot Positioning visualizes laser position and working dimensions

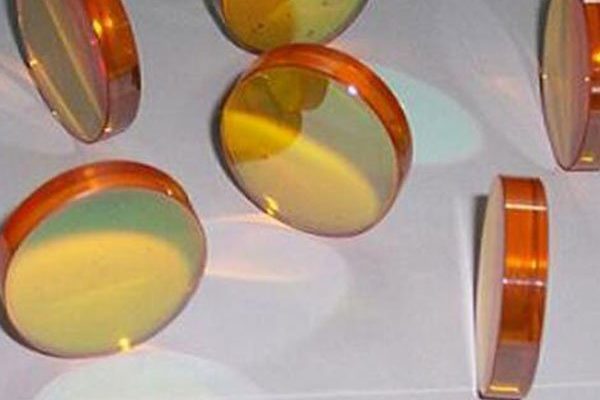

Imported Optical Lens

Imported Optical Lens, beam transmission up to 99.3%, 14% higher than the common lens

lens
laser tube

Laser Tube​

Germany Glass Tube

40% higher laser power than common laser tuber of the same length

Lifetime lasts up to 10,000h.

Control Panel​

Ethernet(10/100M) and USB2.0 transmission(support offline works);
Optimized engraving and cutting path;
Dynamic display of the whole processing progress of the graphics;
Support breakpoint continuous engraving and cutting.

control-panel
motor

High Dynamic Drive and Motor​

Different vibration strategies for low speed, medium speed to ensure smooth and reliable

operation of the motor within full speed range.

High reliability with overvoltage and overcurrent protection

Large-torque, smooth running with low heat

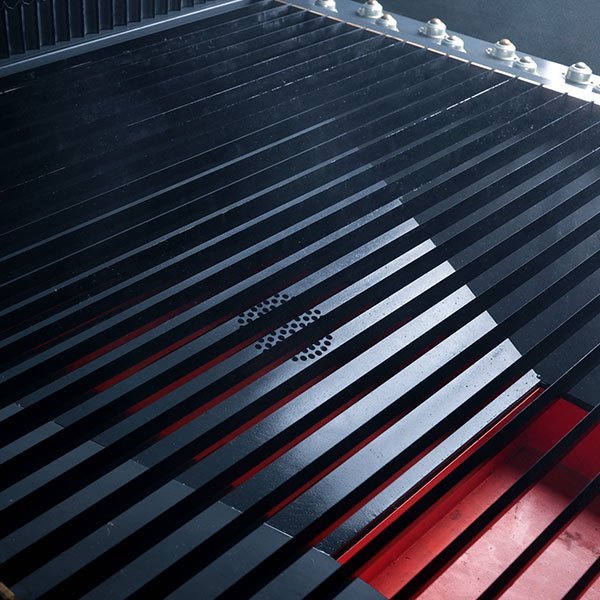

Blade-type Worktable

Used for machining hard materials such as acrylic, wood, bamboo, MDF, etc.

Load capacity:max.30kg

blade-work-table
belt

Synchronous Belt

Made of TPU and stainless steel wire
Stable size, flexible, low pre-tension, low noise, wear-resistant
Linear speed reaches 80m/s

Original Taiwan PMI Linear Guide Rail​

The linear guide ensures precise processing for delicate and complicated designs, high location accuracy(up to 40um)
Less abrasion, maintain accuracy for a long time
Good performance for high-speed movement, greatly reducing the required drive force

guide-rail
water-chiller

Industrial Water Chiller​

Intelligent dual temperature dual control mode to satisfy different needs of the fiber laser device and the optics; temperature control accuracy:±0.3℃
Multiple alarm protection
Long life and durability, easy to operate

Optional Parts

rotary

Rotary

Facilitate engraving on cylinder objects such as bottle, cup, etc. Max. range: 1100mm or more to customize Electric Chuck ( for regular cylinder)
air-filter

High-efficiency Air Filters

Environment-friendly, pollution-free, suitable for indoor working
updown-table

Updown table

Efficient for your material handling.

honey-work-table

Honey work table

Better adsorption performance for machining soft materials such as leather, paper, rubber, cloth, etc.

Application

Applied Materials

Acrylic
PVC
Leather
Rubber
Fabric
Wood
Polywood
MDF
Laminate
Organic Board
Mat Board
Fiberglass
Plexiglass
Mylar
ABS
Paper
Cloth
Fabric
Glass
Crystal
Marble
Painted metal
Aluminum
Ceramic
Tile

Applied Industry

Handicraft Carving, Advertising, Light Guides, Models, Leather, Clothing, Toys, Paper Products Industry, Electronic Product, Printing and Packaging, DIY, Photo Studio, and other industries with high requirements on engraving precision
